[LiLz Cam App] Update the Firmware of LiLz Cam

Gaku Fujii
Updated

Using the Polling Downlink mode, you can update the firmware of the LiLz Cam through the LiLz Cam App. It has been observed that outdated firmware versions can occasionally cause image loss or anomalies in captured images. We recommend updating to the latest firmware versions: 1.0.e1.3.3

Note: The latest firmware versions have changed from the traditional 3-byte notation to a 5-byte notation (e.g., f1.2.9 → 1.0.e1.3.3).

Prerequisites

  • Your camera's firmware version must be f1.2.9, 1.0.e1.3.0 or higher.

Step 1: Check the Current Firmware Version

  1. Connect the LiLz Cam App to the LiLz Cam.
    Connection Instructions: https://support.lilz.jp/hc/en-001/articles/360040780214

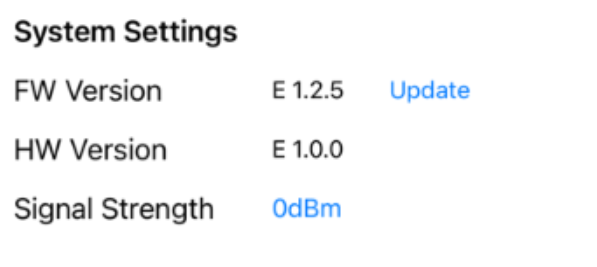

  2. Scroll to the bottom of the LiLz Cam App and check the FW version under "System Settings."

If the FW version shows as f1.2.9, 1.0.e1.3.0 or higher, you can update the firmware via the LiLz Cam App.

Step 2: Enable Polling Downlink Mode and Update the Firmware

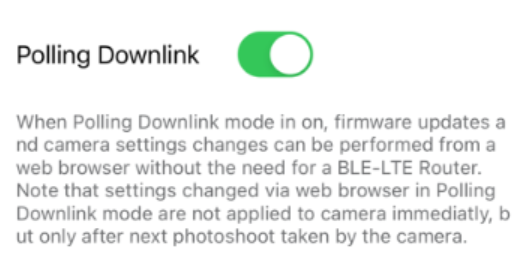

  1. In the LiLz Cam App, tap on the Polling Downlink mode, set it to ON, and tap the "Done" button in the upper right corner.

  2. Reconnect the LiLz Cam to the LiLz Cam App.

  3. Tap the "Update" button for the FW version.

  4. In the firmware management screen, tap the latest firmware version.

  5. Tap "Execute" in the firmware update confirmation dialog.

  6. Please wait without turning off the power while the firmware is being written.

  7. Once the firmware update is complete, the camera will restart. Reconnect it to the LiLz Cam App and verify that the firmware has been updated.

This completes the firmware update using the LiLz Cam App.
